PUR SPR24 MB

Thick‑walled antistatic polyurethane hose reinforced with a steel spiral with very good abrasion resistance, intended for extraction and pneumatic transport of coarse loose abrasives such as granules, pellets, sand, gravel, loose food products etc.

Characteristics

Category:

PUR MB

Diameter:

100 – 500 mm

For the transport of media:

solids
liquids
gas

Application:

transfer of loose abrasives
transport of loose materials
potentially explosive areas
for industrial vacuum cleaners
for the transport of granules
to the wood industry
for municipal technologies
for agricultural equipment

Also check:

Chemical resistance table

	abrasion resistant
	pressure and vacuum resistant
	antystatyczny	<10⁹ Ω
	contact with food	Atest PZH*
	flexibility	**
	smoothed inner wall
	temperature resistance	-30 to +80°C
	flammability class	V-II acc. to UL94
	standard lengths	5 m, 10 m, 20 m

* Certificate of Health Quality (PL: Atest PZH – Świadectwo Jakości Zdrowotnej). The PUR hoses MB, PUR SP and PUR AG meet the requirements of EU Regulation 1935/2004 regarding organoleptic properties and overall migration for model liquids. Attention! Not suitable for transporting fats.

Profile

Download

Product-catalog.pdf

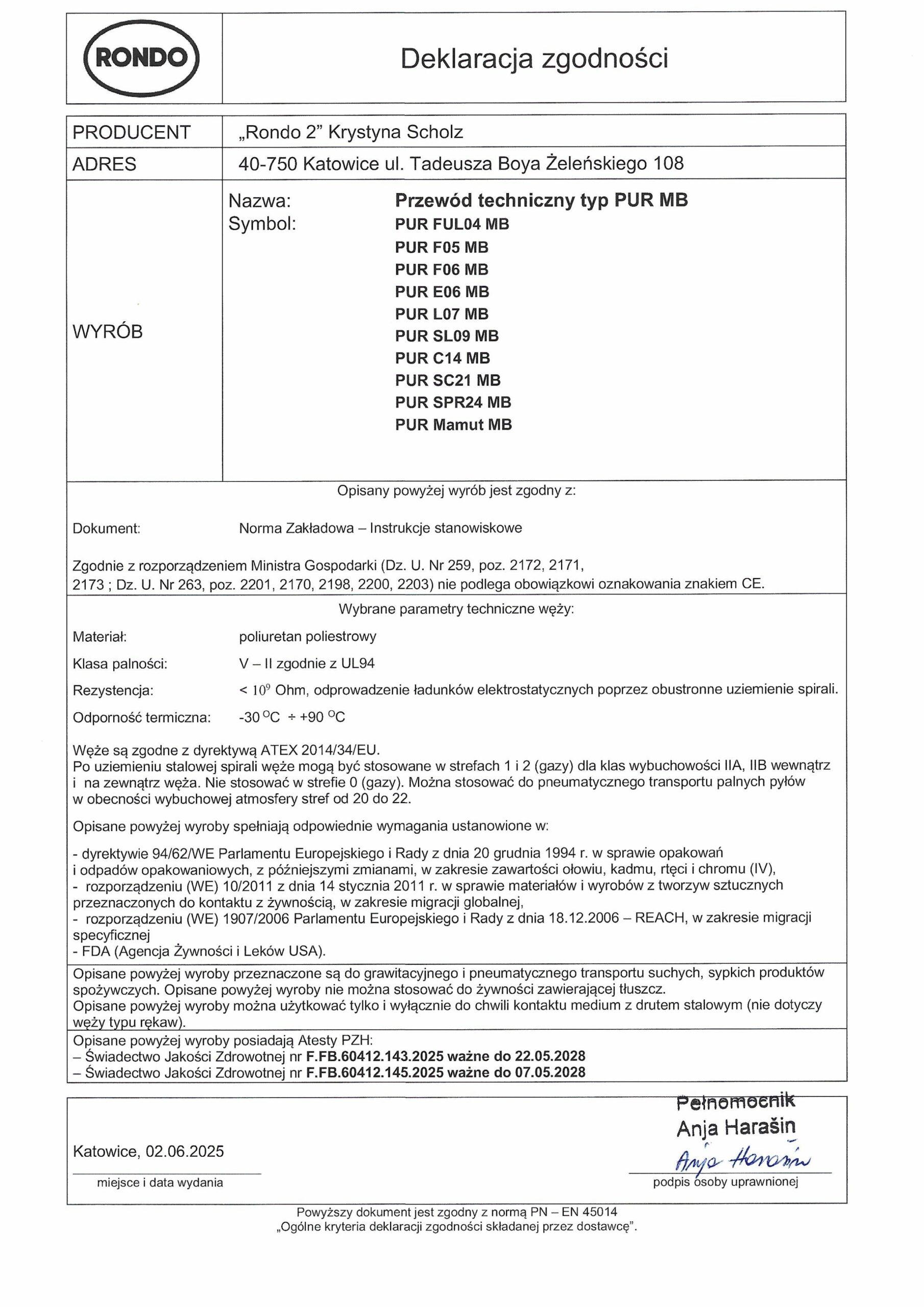

Deklaracja-Zgodnosci-PUR-MB-1.pdf

Information-sheet-industrial-hoses.pdf

Technical parameters

product catalog	Inner diameter [mm]	Outer diameter [mm]	Bending radius [mm]	Approx. weight [kg/m]	Pressure [bar]	Vacuum [bar]
1 – MB – 06 – 0100	100	110	650	2,3	2,1	-0,90
1 – MB – 06 – 0105	105	115	680	2,4	2,0	-0,90
1 – MB – 06 – 0110	110	120	710	2,5	2,0	-0,90
1 – MB – 06 – 0115	115	125	720	2,6	1,8	-0,90
1 – MB – 06 – 0120	120	130	740	2,7	1,8	-0,90
1 – MB – 06 – 0125	125	135	760	2,9	1,7	-0,90
1 – MB – 06 – 0127	127	137	780	2,9	1,7	-0,90
1 – MB – 06 – 0130	130	140	810	3,0	1,7	-0,80
1 – MB – 06 – 0135	135	145	830	3,1	1,6	-0,80
1 – MB – 06 – 0140	140	150	860	3,2	1,6	-0,70
1 – MB – 06 – 0145	145	155	900	3,3	1,5	-0,70
1 – MB – 06 – 0150	150	160	990	3,4	1,5	-0,85
1 – MB – 06 – 0160	160	170	1110	4,1	1,4	-0,80
1 – MB – 06 – 0165	165	175	1130	4,2	1,3	-0,70
1 – MB – 06 – 0170	170	180	1160	4,4	1,3	-0,70
1 – MB – 06 – 0180	180	190	1190	4,8	1,3	-0,60
1 – MB – 06 – 0185	185	195	1250	5,0	1,2	-0,60
1 – MB – 06 – 0190	190	200	1320	5,1	1,2	-0,50
1 – MB – 06 – 0200	200	210	1440	5,5	1,1	-0,50
1 – MB – 06 – 0203	203	213	1880	5,6	1,0	-0,50
1 – MB – 06 – 0210	210	220	1940	5,8	1,0	-0,50
1 – MB – 06 – 0220	220	230	2030	6,1	1,0	-0,40
1 – MB – 06 – 0226	226	236	2090	6,2	0,9	-0,35
1 – MB – 06 – 0240	240	250	2250	6,4	0,8	-0,35
1 – MB – 06 – 0250	250	260	2300	6,6	0,8	-0,35
1 – MB – 06 – 0275	275	285	2530	6,8	0,7	-0,35
1 – MB – 06 – 0280	280	290	2900	6,9	0,7	-0,35
1 – MB – 06 – 0300	300	310	3100	7,3	0,7	-0,35
1 – MB – 06 – 0315	315	325	3300	7,5	0,7	-0,35
1 – MB – 06 – 0320	320	330	3350	7,6	0,6	-0,35
1 – MB – 06 – 0350	350	360	4050	8,2	0,6	-0,35
1 – MB – 06 – 0355	355	365	4100	8,2	0,5	-0,35
1 – MB – 06 – 0400	400	410	4600	8,8	0,5	-0,35
1 – MB – 06 – 0450	450	460	5200	9,6	0,5	-0,35
1 – MB – 06 – 0500	500	510	5800	12	0,3	-0,30

The maximum tolerance range for the specified parameters is 5%. The tolerance for the internal diameters of hoses is ±2 mm. All parameters listed in the table are specified for room temperature.

PUR MB hoses are permanently antistatic. When the hose is used in Ex zones, a conductive connection must be ensured between the hose and a grounded part of the associated equipment, in accordance with ATEX requirements. The maximum permissible hose length that meets the leakage resistance requirement of not exceeding 100 MΩ is 40 m.

The direction of the conveyed medium flow is indicated on the hose by an arrow. For non-transparent hoses, the flow direction is specified in the installation instructions.

The helix in PUR hoses is right-hand wound.

Commercial hose lengths are measured in the fully extended state.

Returns are accepted only for orders of standard commercial lengths.

Depending on the type, diameter, and length, hoses are packaged either in a straight form, axially compressed, or coiled into rings, and then wrapped in stretch film or packed in cardboard boxes. Please inform us of your preferred hose packaging method when placing your order.

Before using the product, please read the installation and operating instructions carefully.

Hoses in colors other than the standard color, as well as hoses with custom printing, are manufactured to special order.
