PUR Foil Ultra Light MB

Perfectly flexible antistatic polyurethane hose, reinforced with steel spiral, with very good abrasion resistance, used e.g. in mobile machines for extracting and transporting fine‑grained loose abrasives, such as dusts, powders, sawdust, loose food products etc.

Characteristics

Category:
Diameter:
32 – 300 mm
For the transport of media:
  • solids
  • gas
Application:
  • transfer of loose abrasives
  • transport of loose materials
  • potentially explosive areas
  • to the wood industry
odporny na ścieranie abrasion resistant
rezystancja powierzchniowa antistatic <109 Ω
ściśliwy osiowo axially compressible
elastyczność flexibility *****
odporność termiczna temperature resistance -30 to +90°C
klasa palności flammability class V-II acc. to UL94
odporny na ścieranie contact with food Atest PZH*
długości handlowe standard lengths 10 m

* Certificate of Health Quality. PUR MB hoses meet the requirements of EU Directive 2002/72 / EC, Regulation PE 1935/2004 regarding organoleptic characteristics and global migration for A, B, C model fluids. Note! Do not use for the transport of fats.

Technical parameters

Product catalog
Inner
diameter
[mm]
Outer
diameter
[mm]
Bending
radius
[mm]
Approx.
weight
[kg/m]
Vacuum
[bar]
1 – MB – 16 – 0032 32 36 36 0,3 -0,22
1 – MB – 16 – 0035 35 39 39 0,3 -0,21
1 – MB – 16 – 0040 40 44 46 0,3 -0,20
1 – MB – 16 – 0050 50 54 54 0,3 -0,16
1 – MB – 16 – 0060 60 64 64 0,3 -0,13
1 – MB – 16 – 0063 63 67 67 0,3 -0,13
1 – MB – 16 – 0070 70 74 74 0,3 -0,10
1 – MB – 16 – 0080 80 84 84 0,4 -0,09
1 – MB – 16 – 0085 85 89 89 0,4 -0,07
1 – MB – 16 – 0090 90 94 94 0,4 -0,06
1 – MB – 16 – 0100 100 104 104 0,4 -0,06
1 – MB – 16 – 0110 110 114 114 0,4 -0,05
1 – MB – 16 – 0120 120 124 124 0,5 -0,05
1 – MB – 16 – 0125 125 129 129 0,5 -0,05
1 – MB – 16 – 0127 127 131 131 0,5 -0,05
1 – MB – 16 – 0130 130 134 134 0,5 -0,05
1 – MB – 16 – 0140 140 144 144 0,5 -0,04
1 – MB – 16 – 0145 145 149 149 0,6 -0,04
1 – MB – 16 – 0150 150 154 154 0,6 -0,04
1 – MB – 16 – 0152 152 156 156 0,6 -0,04
1 – MB – 16 – 0155 155 159 159 0,6 -0,04
1 – MB – 16 – 0160 160 164 164 0,6 -0,03
1 – MB – 16 – 0165 165 169 169 0,6 -0,03
1 – MB – 16 – 0170 170 174 174 0,7 -0,03
1 – MB – 16 – 0180 180 184 184 0,7 -0,03
1 – MB – 16 – 0190 190 194 194 0,7 -0,03
1 – MB – 16 – 0200 200 204 204 0,8 -0,02
1 – MB – 16 – 0203 203 207 207 0,8 -0,02
1 – MB – 16 – 0210 210 214 214 0,8 -0,02
1 – MB – 16 – 0220 220 226 226 0,8 -0,02
1 – MB – 16 – 0226 226 232 232 0,9 -0,02
1 – MB – 16 – 0250 250 256 255 0,9 -0,02
1 – MB – 16 – 0270 270 276 276 1,0 -0,02
1 – MB – 16 – 0275 275 281 281 1,0 -0,02
1 – MB – 16 – 0280 280 286 286 1,0 -0,02
1 – MB – 16 – 0300 300 306 306 1,1 -0,02

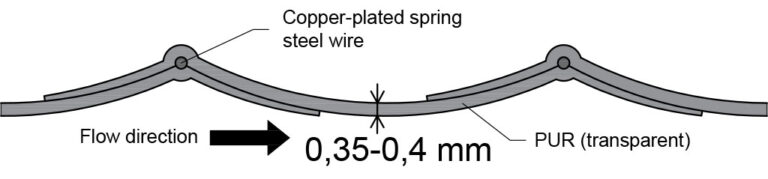

Tolerance for the parameters contained in this catalog is about 5%. All parameters apply for room temperature. To discharge static electricity, ground the spiral. The flow direction of the medium is marked on the hose with an arrow. It is possible to make a hose with a non‑standard diameter (not included in the basic offer) and make hoses in color and with a print on a special request. The standard lengths of the hoses are measured while maximum extension.
