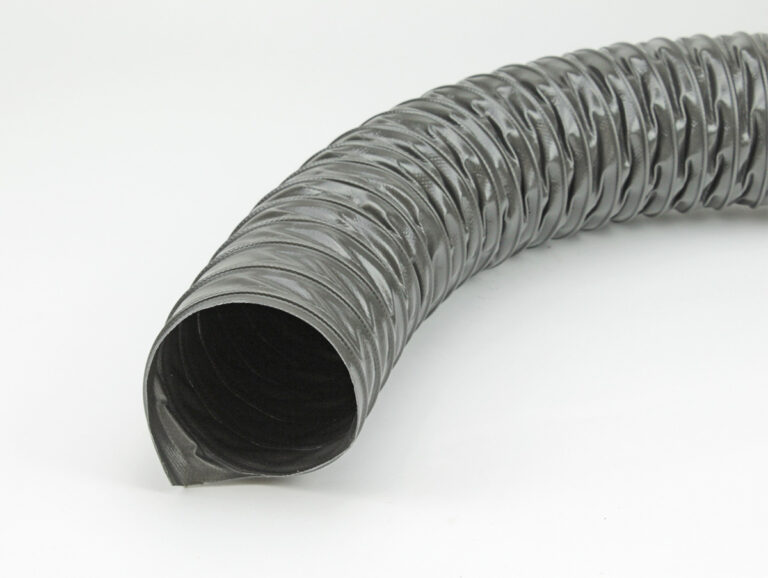

PVC Hydro

Thick-walled pressure hose made of softened polyvinyl chloride reinforced with a hard PVC spiral with very good resistance to hydrolysis and chemicals, resistant to pressure and vacuum, smooth inner wall, used for pneumatic and gravity transport of solid media, liquids and gases, especially in sanitary installations, agricultural machinery or as a pool hose.

Characteristics

Category:
Diameter:
20 – 110 mm
For the transport of media:
  • solids
  • liquids
  • gas
Application:
  • transport of loose materials
  • transmission of hydrolysis media
  • to extract chemical vapors
  • for the transport of granules
  • for municipal technologies
  • for agricultural equipment
  • for applications with the required resistance to hydrolysis and microbes
  • for transporting water
odporny chemicznie chemically resistant
odporny na hydrolizę resistant to hydrolysis
elastyczność flexibility **
wygładzona ścianka wewnętrzna węża smoothed inner wall
odporny na ciśnienie i podciśnienie pressure and vacuum resistant
odporność termiczna temperature resistance -5°C to +60°C
długości handlowe standard lengths 30 m

Technical parameters

Product catalog
Inner
diameter
[mm]
Bending radius
[mm]
Approx.
weight
[kg/m]
Pressure
[bar]
Vacuum
[bar]
ASE H 020 20 70 0,2 23 -0,70
ASE H 025 25 100 0,3 20 -0,60
ASE H 032 32 115 0,3 18 -0,60
ASE H 035 35 122 0,4 17 -0,60
ASE H 040 40 146 0,5 15 -0,60
ASE H 045 45 151 0,5 14 -0,60
ASE H 050 50 190 0,7 13 -0,60
ASE H 063 60 250 0,8 11 -0,60
ASE H 075 75 310 1,2 10 -0,60
ASE H 080 80 320 1,4 10 -0,60
ASE H 100 100 410 1,7 10 -0,60
ASE H 110 110 450 1,9 10 -0,60

Tolerance for all parameters is 5%. All parameters are valid for room temperature.
The commercial lengths of hoses are measured when fully stretched.
