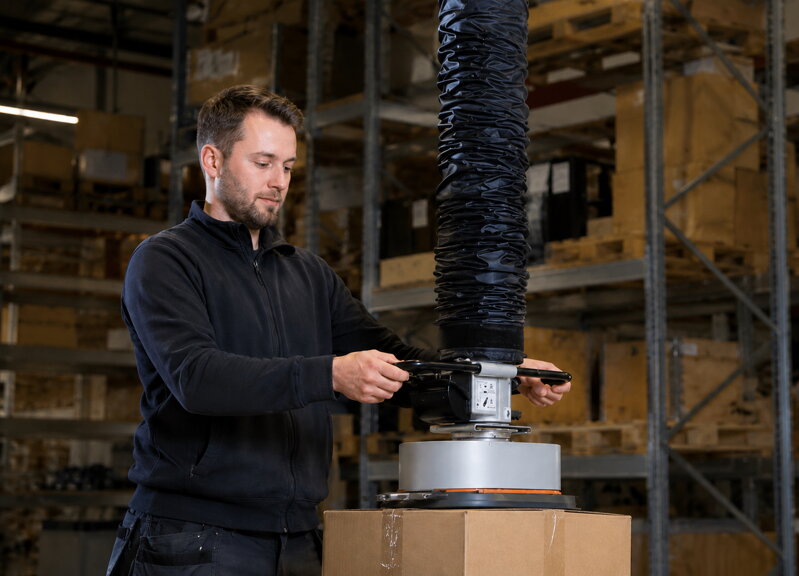

Specialised high-temperature, lightweight and highly flexible compression hose designed for vacuum manipulators and industrial vacuum lifters. The hose enables safe handling, lifting and moving of materials by means of negative pressure, and thanks to its high axial compressibility it easily adapts to the movement of the manipulator.
The hose construction was developed for applications where a combination of low weight, flexibility and high compressibility is essential. One metre of hose can be compressed axially to a length of approx. 350 mm, which greatly facilitates the operation of the vacuum lifting system and reduces the strain on the operator.

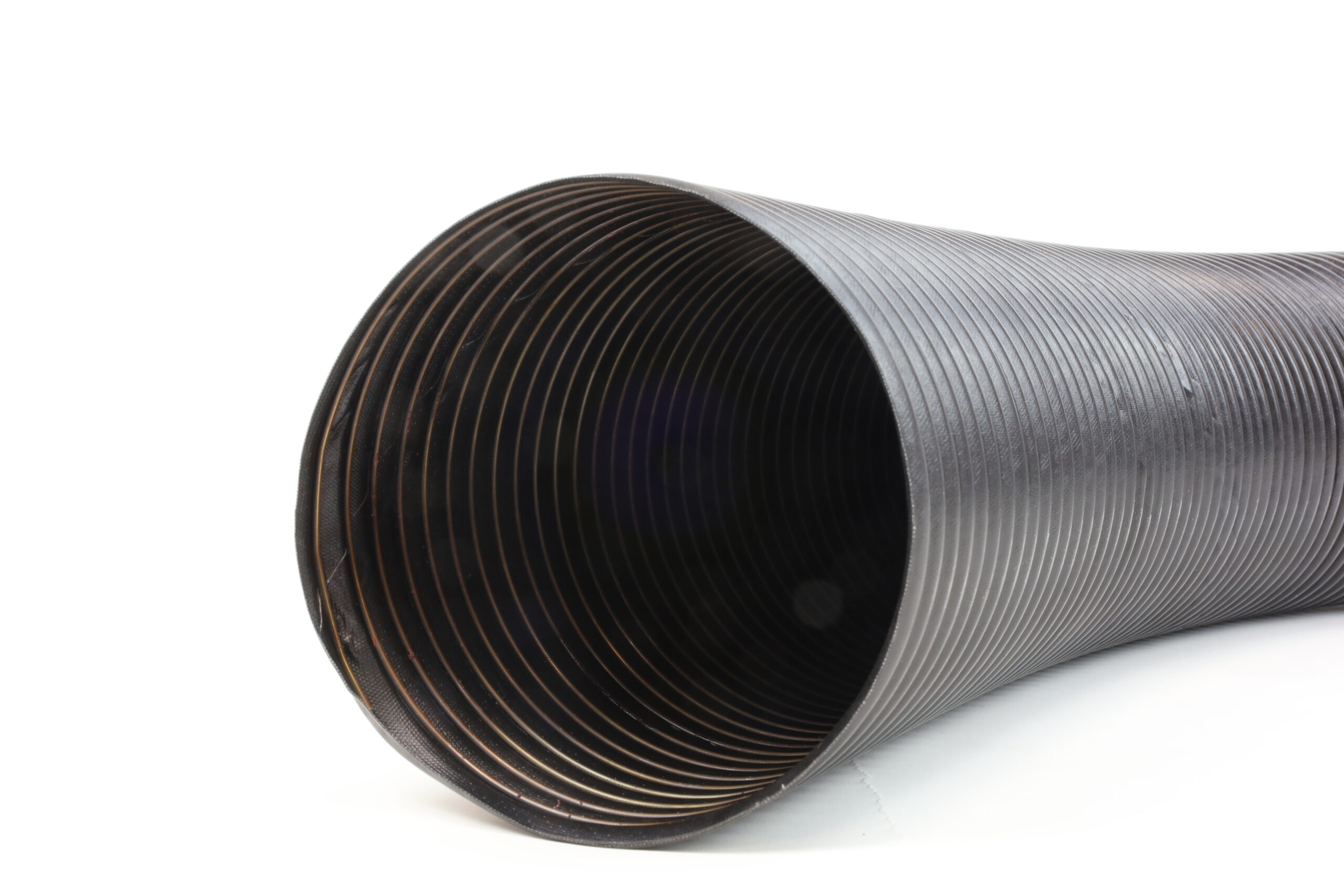

The hose is reinforced with a coppered steel spiral, which provides adequate stability when operating under negative pressure. The outer layer is made of neoprene-coated polyester fabric, complemented by an acrylic protective tape and a black glass cord.
 |
axially compressible – designed for vacuum manipulators | ✔️ |
 |
chemically resistant | ✔️ |
 |
thermal resistance | -35 ÷ +135°C |
 |
flexibility | ★★★★☆ |
 |
standard lengths | 3 m |
All parameters listed in the table are specified for room temperature. The maximum tolerance range for the specified parameters is 5%. In order to discharge static electricity, the spiral must be grounded on both sides. Commercial hose lengths are measured in the fully extended state. Returns are accepted only for orders of standard commercial lengths. Depending on the type, diameter, and length, hoses are packaged either in a straight form, axially compressed, or coiled into rings, and then wrapped in stretch film or packed in cardboard boxes. Please inform us of your preferred hose packaging method when placing your order.
