PVC Hydroflex

Thick-walled pressure hose made of softened polyvinyl chloride reinforced with a hard PVC spiral with very good resistance to hydrolysis and chemicals, resistant to pressure and vacuum, smooth inner wall, used for pneumatic and gravity transport of solid media, liquids and gases, especially in sanitary installations, agricultural machinery or as a pool hose.

Characteristics

Category:

PVC hoses

Diameter:

20 – 127 mm

For the transport of media:

solids
liquids
gas

Application:

transport of loose materials
transmission of hydrolysis media
to extract chemical vapors
for the transport of granules
for municipal technologies
for agricultural equipment
for applications with the required resistance to hydrolysis and microbes
for transporting water

Also check:

Chemical resistance table

	chemically resistant	★★★★☆
	resistant to hydrolysis	★★★★★
	flexibility	★★☆☆☆
	smoothed inner wall	✔
	pressure and vacuum resistant	✔
	temperature resistance	-5°C to +60°C
	standard lengths	30 m

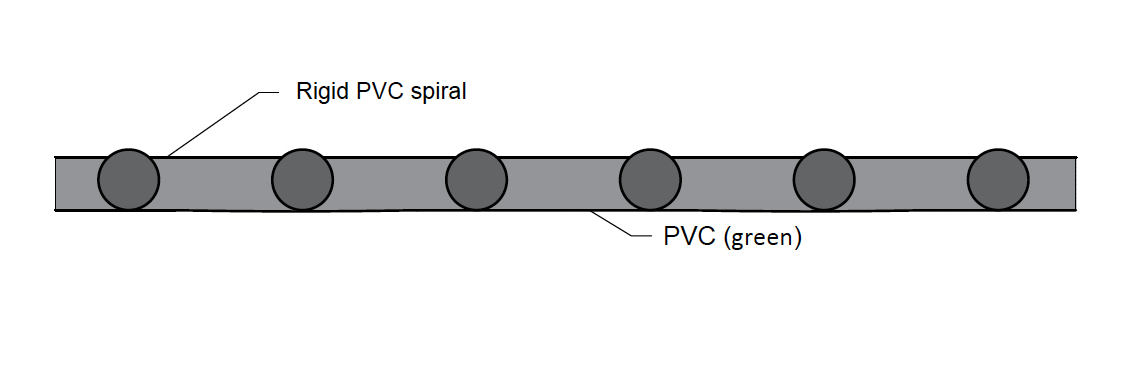

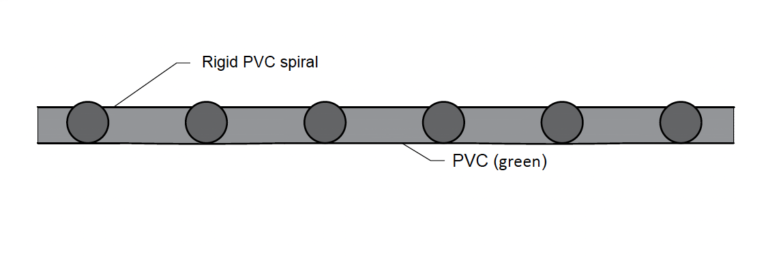

Profile

Download

Product-catalog.pdf

Deklaracja-zgodnosci-PVC-Hydroflex.pdf

Technical parameters

Product code	Inner diameter [mm]	Outer diameter [mm]	Bending radius [mm]	Approx. weight [kg/m]	Pressure [bar]	Vacuum [bar]
PVC Hydro 020	20	26	80	0,3	6	-0,8
PVC Hydro 025	25	31	100	0,3	6	-0,8
PVC Hydro 032	32	38	110	0,4	5	-0,8
PVC Hydro 035	35	41	120	0,5	5	-0,8
PVC Hydro 040	40	46	140	0,6	4	-0,8
PVC Hydro 045	45	51	150	0,7	4	-0,8
PVC Hydro 050	50	57	180	0,8	4	-0,8
PVC Hydro 060	60	67	220	1,0	4	-0,8
PVC Hydro 063	63	71	240	1,0	4	-0,8
PVC Hydro 075	75	84	300	1,4	4	-0,8
PVC Hydro 080	80	89	330	1,5	3	-0,8
PVC Hydro 090	90	99	370	1,8	3	-0,8
PVC Hydro 100	100	110	400	2,1	3	-0,8
PVC Hydro 110	110	120	420	2,4	2,5	-0,8
PVC Hydro 127	127	138	500	3,1	2,5	-0,7
